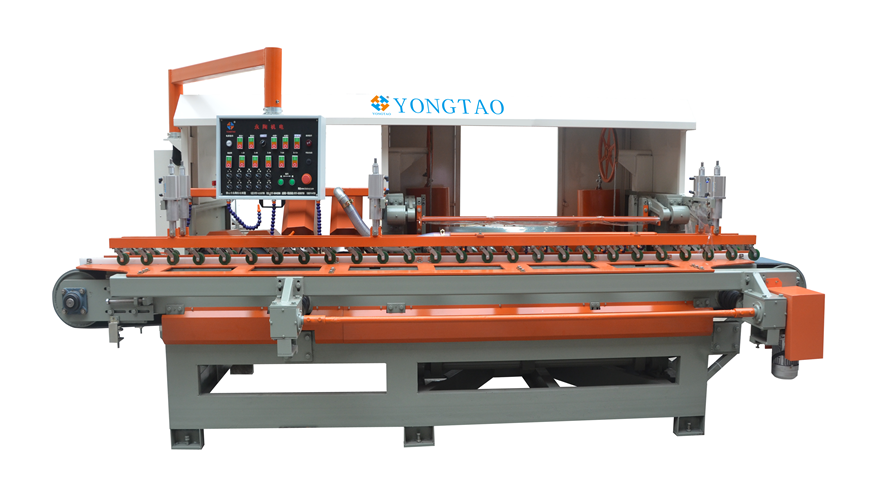

YTYP-1200/4+10 Porcelain Tile Edge Polisher
Yongtao porcelain tile edge polisher features 2 heads for squaring, 2 heads for 45° chamfering, and 10 heads for bullnose polishing, ensuring precise, high-quality edges.
Product introduction
YTYP-1200/4+10 Bullnose Ceramic Tile Edge Polisher, this machine is a simple ceramic tile bullnose machine,which has two heads for squaring,two heads for 45 degree chamfer,and 10 heads for arc polishing. The press beam adopts pneumatic structure, which can easy to adjust pressure to the tiles during processing. The grinding motors adopt double deck water proof structure to ensure the good protection for the motors, the inner of spindle use labyrinth type water proof structure, and outside of mover covered with stainless cover. The max processing width of machine: 1200mm, processing speed: 3-6m/min. It can make ceramic skirting, ceramic stair step bullnose, and 45 degree edge chamfer, suit for small quantity of out put processing factory.
Tile Bullnose Edge Polishing Machine:
Machine specifications
| Conveyor belt | 300mm |
|---|---|
| Nos. of squaring head | 2pc |
| Diameter of squaring wheel | Φ200mm |
| Nos. of chamfering head | 2 pc (45 degree) |
| Power of chamfering motor | 2.2kw |
| Diameter of chamfering wheel | Φ200mm |
| Nos. of polishing head | 10c |
| Diameter of polishing wheel | 95mm |
| Power of polishing motor | 1.5kw |
| Power of swing motor | 4kw |
| Workable width | 80-1200mm |
| Power of conveyor belt | 2.2kw |
| Polishing speed | 3-6m/min |
| Thickness of tile | 6-20mm |
| Power of baffle motor | 0.75kw |
| Total power | 24.85kw |
| Air consumption | 40L/min |
| Water consumption | 300L/min |
| Dimension of machine | 4.5m*2.0m*1.8m |
| Weight | About4000 kg |
Technical data reflects the legacy product record. Confirm voltage, options and final configuration with the approved quotation.
