YTYP-1200/7+14 Porcelain Tile Bullnose Machine
Buy Yongtao Porcelain Tile Bullnose Machine, process ceramic tile staircase steps, bullnosing and beveling, the polishing is completed at one time, the polishing effect is good!
Product introduction

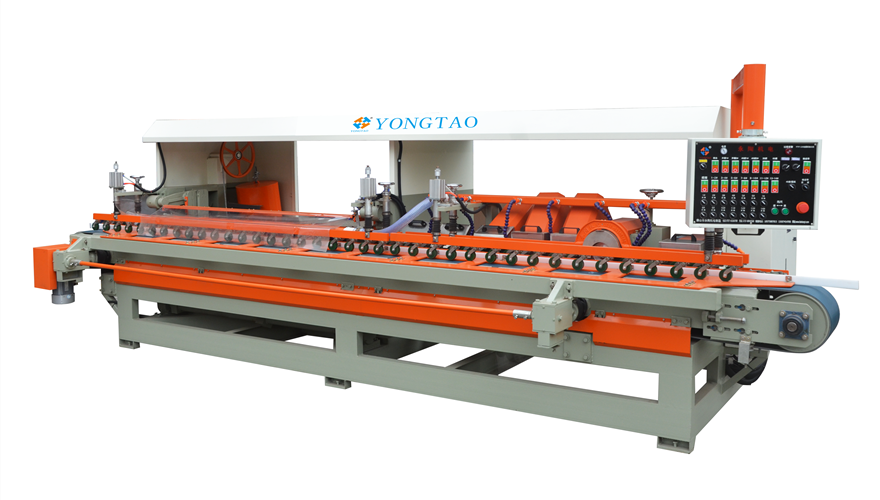

YTYP-1200/7+14 Porcelain Tile Bullnose Machine
YTYP-1200/7+14 Porcelain Tile Bullnose Machine is applied to the deep processing of ceramics, for example: edging, chamfering (30 degree,45 degree, 60 degree), bottom chamfering, grinding bullnose, polishing (bullnose, 45 degree edge), slotting (anti-skid slot, flat slot). It is a typical porcelain tile bullnose machine.
There are seven motors in the front of machine, include:one head of squaring, one head of groove, two head of 45 degree chamfer, one head of 60 degree chamfer,and two head of bottom chamfer. We can easily control the motor individual according to the function that you want. In the behind of the machine, there are 14 polishing heads, through different granularity of abrasive to grind and polish 90 degree arc edge for ceramic tiles.The operation is very simple and high productivity.
Ceramic Tile Bullnose Machine:
YTYP-1200/7+14 Tile Bullnose Machine:
Machine specifications
| Conveyor belt | 300mm |
|---|---|
| Nos. of squaring head | 1pc |
| Diameter of squaring wheel | Φ200mm |
| Nos. of slotting disc | 1 pc |
| Diameter of slotting disc | Φ150mm |
| Power of squaring and slotting disc | 3kw |
| Nos. of chamfering head | 3 pc (30, two 45) |
| Power of chamfering motor | 2.2kw |
| Bottom chamfering head | 2 pc |
| Power of bottom chamfering motor | 1.5kw |
| Diameter of chamfering wheel | Φ200mm |
| Nos. of polishing head | 14pc |
| Diameter of polishing wheel | 95mm |
| Power of polishing motor | 1.5kw |
| Power of swing motor | 4kw |
| Workable width | 80-1200mm |
| Power of conveyor belt | 2.2kw |
| Polishing speed | 4-8m/min |
| Thickness of tile | 6-20mm |
| Power of baffle motor | 0.75kw |
| Total power | 33.05kw |
| Air consumption | 50L/min |
| Water consumption | 490L/min |
| Dimension of machine | 6.2m*2.1m*1.8m |
| Weight | About 5800 kg |
Technical data reflects the legacy product record. Confirm voltage, options and final configuration with the approved quotation.
